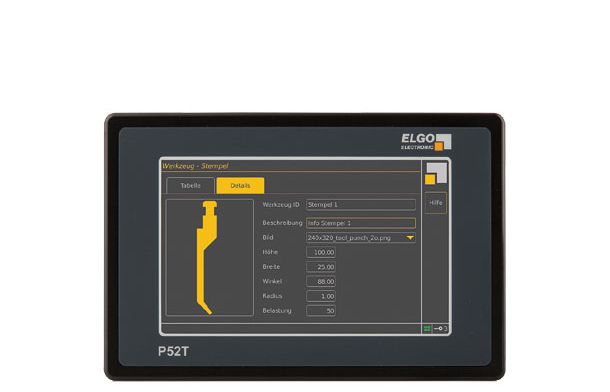

P52 CNC軸控制器，配有觸摸屏通用位置控制器，用于多軸應用
?最多可定位4個軸用于鈑金加工的定制軟件（剪板機和折彎機）
7寸或10.1寸寬屏彩色TFT
高品質電阻式觸摸屏導航
?帶按鍵的外置控制面板
?精密定位的背面量規(guī)
?控制切割間隙和切割角度
?板材支撐和退回功能
?可調切割長度限制器
?RTO（返回到操作員）功能
?基于面板的構造
?USB接口
MECHANICAL DATA
| Housing | panel housing |
| Housing material |
front plate: aluminium housing: galvanized steel sheet |
| Front plate dimensions?(W x H) |
? 7 touch screen-panel: 216 x 144 mm? 10 touch screen-panel: 286 x 194 mm? |
| Dimensions of decentral controller ?(L x?W x D) | 192 x 132 x 54 mm |
| Panel cut out?(W x H) |
? 7,0?version: 196 x 144 mm 10,1 version: 286 x 194 mm |
| Keyboard |
touch screen-panel: resistive touch optional control panel: Membrane keypad |
| Installation depth |
? 7,0 version (decentral):?? 32 mm ? 7,0 version (All-In-One):?70 mm 10,1 version (decentral):?? 40 mm 10,1 version (All-In-One):?72 mm each without connectors |
ELECTRICAL DATA
| Display | 7 widescreen touch TFT or 10,1 widescreen touch TFT |
| Hardware |
A) controller unit: 32 Bit microcontroller with 1 MByte Flash and 128 KByte RAM B) touch screen panel: ARM Cortex A8, 1 GHz clock frequency, 512 MB RAM, 4 GB Flash |
| Software |
A) controller unit: real-time OS, see on freeRTOS.de B) touch screen panel: Linux OS |
| Program memory | up to1000?steps, more on request |
| System accuracy | ± 1 inkrement |
| Power supply voltage | 24 VDC +10/-20 % |
| Current consumption |
A) controller unit: 400 mA (unloaded); permitted total current, without outputs: 1 A B) touch screen panel: 300 mA |
| Encoder supply voltage | 4 x (6x) 24 VDC or 5 VDC |
| Load by encoder/ measuring system | max. 130 mA |
| Input signals (measuring system) | HTL, TTL, analog (order disignation), on request: CANopen, RS422 |
| Signal channels | A, B, Z, bzw. A, A', B, B', Z, Z' or analog 0 ...?10 V?(order disignation) |
| External inputs | 16 x?galvanically isolated digital PNP Inputs, freely programmable |
| Input current/ pin | max. 10 mA |
| Min. pulse time for inputs | 300 ms |
| Max. input frequency | 100 kHz, higher on request |
| Analog inputs | 4 x 0 ... 10 V (12 Bit)?at 10 VDC measuring system supply? |
| Output signals | 16 galvanically isolated digital outputs, freely programmable |
| Output current | max.?625 mA; the outputs are durable short circuit proof (no multiple short circuits) |
| Freewheel clutch/ outputs | for inductive loads integrated (clamping voltage at the Output max. -60 V) |
| Analog outputs |
2 x ±10 V with hydraulic axes regulator 2 x (4 x) ± 10 V with PID regulator 4 x 10 V reference voltage for measuring systems (max. 20 mA, short circuit proof) |
| Interfaces | standard: RS232 on request; CANopen, RS422 |
| Connections | industry standard connectors (3.81 mm grid, lockable), RJ45 (connection to control panel and CAN) and D-SUB (RS232) dependning on version |
| Power down memory |
A) controller unit: E2Prom (service life: 1.000.000? switching on/off cycles or 40 years) B) touch screen panel: Micro SD Flash card |
| Accessories |
NG13 power pack (primary: 115/230 VAC secondary: 24 VDC /600 mA), relay card RP8 with 8 changeover relays (28 VDC/250 VAC / 12 A), external control panel with membrane keypad (216 mm x 144 mm) |
ENVIRONMENTAL CODITIONS
| Operating temperature | -0 ... +45 °C? |
| Storage temperature | -20 ... +50 °C |
| Humidity | max.?80 %, non-condensing |
| Protection class (front) | IP43 installed state |
| Protection class (rear) | IP00 |
| Protection class (external components) | IP00 |
