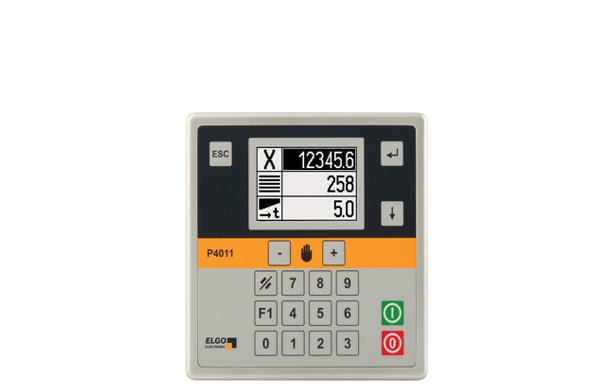

P4011用于單軸緊湊型定位控制
該控制器是為機械工程中的簡單定位應用而設計的，旨在實現最高效率。- 液晶顯示器
- 手動操作
- 單記錄操作
- 繼電器輸出
- 可選數字開關輸出
?MECHANICAL DATA
| Housing | panel housing |
| Front plate dimensions?(W x H) | 144 x 144? mm |
|
Housing dimensions (W x H) |
136 x 136 mm |
| Keyboard | foil short stroke keys |
| Installation depth | 40 mm (without connectors) 75 mm (with connectors) |
?ELECTRICAL DATA
| Display | LCD dot matrix 120 x 80 pixels with white background lighting |
| Hardware | 32 bit microcontroller with 1 MByte flash and 56 KByte RAM |
| Program memory | up to 100 steps more on request |
| System accuracy | ± 1 increment |
| Power supply voltage | 24 VDC +10/-20 % |
| Input signals (measuring system) | HTL TTL analog (order designation) |
| Signal channels | A B Z resp. A A' B B' Z Z'?or analog?0 ... 3.3 V (order designation) |
| External inputs | max. 5 digital PNP inputs assignment and logic are freely programmable |
| Analog inputs | 1 analog input (10 bit) at 10 VDC measuring system supply |
| Output signals | max. 5 relais or 8 digital PNP outputs or stepper motor signals assignment and logic (active high/low) are freely programmable |
| Analog outputs | max. 2 analog outputs or ± 10 V?unregulated optional??± 10 V PID) |
ENVIRONMENTAL CONDITIONS
| Operating temperature | 0 ... +45 °C? |
| Protection class (front) | IP43 |
