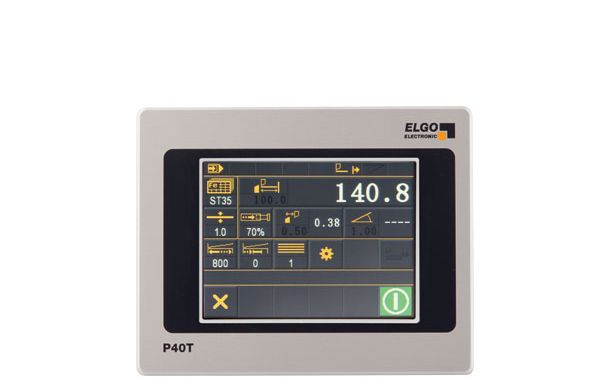

P40T觸摸屏定位控制器可編程多軸定位控制器
TFT顯示器帶觸摸操作手動功能
單機(jī)操作
程序存儲器
數(shù)字輸出可達(dá)2A
模擬輸出
材料取決于間隙、角度和壓力計算
可用于剪板機(jī)
板材托架
板材退回
MECHANICAL DATA
| Housing | panel housing |
| Housing material | front plate: aluminium, housing: galvanized steel sheet |
| Front plate dimensions?(W x H) | 180 x 144? mm |
|
Housing dimensions (W x H) |
136 x 136 mm |
| Panel cut out (W x H) | 138 x 138 mm |
| Keyboard | touchscreen |
| Installation depth | 48 mm (without connectors), 83?mm (with connectors) |
?ELCTRICAL DATA
| Display | TFT touch screen monitor |
| Hardware | 32 bit microcontroller with 1 MByte flash and 128 KByte RAM |
| Program memory | up to 1.000 steps, more on request |
| System accuracy | ± 1 increment |
| Power supply voltage | 24 VDC +10/-20 % |
| Current consumption | max. 200 mA (unloaded), permitted total current (incl. self-consumption): 1A |
| Encoder supply voltage | 24 VDC?or 5 VDC |
| Load by encoder / measuring system | max. 130 mA |
| Input signals (measuring system) | HTL, TTL, analog (order disignation) |
| Signal channels | A, B, Z, resp. A, A', B, B', Z, Z'?or analog?0 ... 3.3 V (order designation) |
| External inputs | 16 x digital PNP inputs, assignment and logic are freely programmable |
| Input current / pin | max. 10 mA |
| Min. pulse time for inputs | 300 ms |
| Max. input frequency | 100 kHz, higher on request |
| Analog inputs | optionally 1 ...?3 analog inputs (12 bit) at 3.3 VDC measuring system supply |
| Output signals | 16 digital PNP outputs, assignment and logic (active high/low) are freely programmable |
| Output current | max. 2 A per output?/?8 A total current across all outputs, the outputs are durable short circuit proof (no multible short circuits) |
| Freewheel clutch/outputs |
for inductive loads integrated (clamping voltage at the output max. -36 V) |
| Analog outputs |
optional: ± 10 V PID or? ± 10 V unregulated (each 12 bit) |
| Interfaces | optional: RS232 |
| Connections | industry standard connectors (3.81 mm grid, lockable) and additional RJ45 sockets (depending on version) |
| Power down memory |
E2Prom (service life: 1.000.000? switching on/off cycles or 40 years) |
| Further options |
8 =? only 8 instead of 16 digital in- and outputs N = digital inputs as NPN version |
| Accessories |
NG13 power pack (primary: 115/230 VAC secondary: 24 VDC /600 mA), relay card RP8 with 8 changeover relays (28 VDC/250 VAC / 12 A), P40 (T) interface cable /Art. No: 820137012) |
ENVIRONMENTAL CONDITIONS
| Operating temperature | -0 ... +45 °C? |
| Storage temperature | -20 ... +50 °C |
| Humidity | max.?80 %, non-condensing |
| Protection class (front) | IP43 (installed state) |
| Protection class?(rear) | IP00 |
